Routing templates are specifically designed for manual pantographs, to easily create the slots for any invisible hinge model, using different inserts. All manual pantographs are made to fit 10mm diameter cutters and 5/8” (16mm) external collet.
Examples for router tools in using CEAM Hinges:
Fixture sold separately.

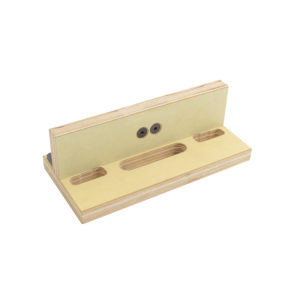

The Routing Templates for 3D Hinges are precision-engineered tools designed to facilitate the installation of invisible hinges by creating accurate slots using a manual pantograph. These templates are compatible with a wide range of CEAM hinge models, making them a versatile choice for various door installations.
Product Features: Compatibility: Designed to work with multiple CEAM hinge models including 1030, 1130, 1131, 1230, 1430, 1431, 1432, and 1432W, offering broad application possibilities. Material: The templates are made to ensure precision and durability for consistent use. Router Tool Compatibility: All manual pantographs are made to fit 10mm diameter cutters and 5/8” (16mm) external collet, ensuring wide compatibility with standard routing tools.
Recommended Router Tools: 1. For CEAM Hinges: Use a 5/8” router bushing with a 10mm router bit. Recommended combinations include the Powertec 71166 bushing with the Amana 45417 bit or the CMT 811.600.11 bit. 2. Alternative Option: Use a 51/64” router bushing with a 9/16” router bit. A recommended combination is the Powertec 71352 bushing with the Whiteside 1075 bit.
Benefits: Precision: These templates are specifically designed to ensure precise slot creation for the installation of invisible hinges, contributing to a seamless and professional finish. Durability: Crafted for longevity, these templates can withstand repeated use without losing their accuracy. Versatility: With compatibility across a range of hinge models, these templates offer flexibility for various project requirements.
Applications: Door Installations: Ideal for creating slots for invisible hinges in interior doors, cabinet doors, and other applications where a clean, concealed hinge appearance is desired. Professional and DIY Projects: Suitable for both professional carpenters and DIY enthusiasts looking to achieve professional-level precision in hinge installation.
Installation Tips: Follow Manufacturer Guidelines: Ensure to use the templates as per the instructions provided by the manufacturer to achieve the best results. Check Compatibility: Verify the compatibility of your router tools with the templates to ensure a smooth routing process.
1030, 1130, 1131, 1230, 1430, 1431, 1432, 1432W
