Home » Shop » ROUTING TEMPLATE FOR 929 3D HINGES
$178.13
This drilling template is designed to work with the 929 CEAM hinge only. It includes a single aluminum routing template with 2 aluminum template inserts. The aluminum template enables the implementation of 2 slots for the invisible hinges.
Examples for router tools in using 929 CEAM Hinges:

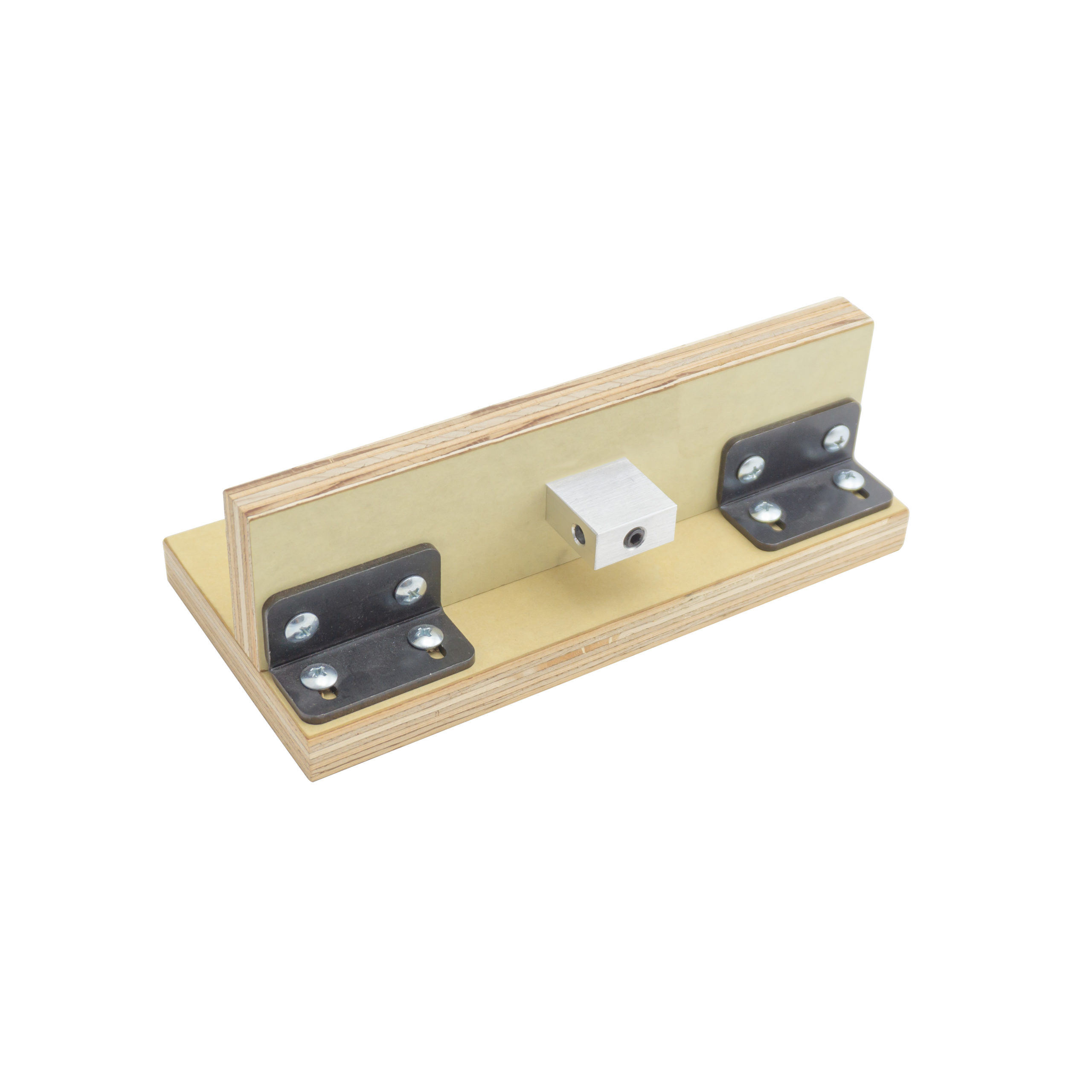

Note: For old version routing template C929TEMP (Wood Template), Use a 5/8″ Router Bushing with a 1/2″ mortising bit.
Out of stock
The Routing Fixture for 929 3D Hinges is a specialized tool designed exclusively for the installation of 929 CEAM hinges. This tool includes a single aluminum routing template along with 2 aluminum template inserts, facilitating the precise implementation of slots required for the invisible hinges. Here’s a detailed overview:
Product Features: – Compatibility: Specifically designed to work with the 929 CEAM hinge, ensuring a perfect fit and precise routing for these particular hinges. – Material: Made from aluminum, providing durability and ensuring the template maintains its shape and accuracy over time. – Includes: The package contains one aluminum routing template and two aluminum template inserts, offering the necessary components for accurate routing.
Recommended Router Tools: 1. For 929 CEAM Hinges: Use a 5/8” router bushing with a 10mm router bit. Recommended combinations include the Powertec 71166 bushing with the Amana 45417 bit or the CMT 811.600.11 bit. 2. Alternative Option: Use a 51/64″ router bushing with a 9/16″ router bit. A recommended combination is the Powertec 71352 bushing with the Whiteside 1075 bit. 3. For Old Version Routing Template (C929TEMP – Wood Template): Use a 5/8″ Router Bushing with a 1/2″ mortising bit.
Benefits: – Precision: The aluminum construction and design of the template ensure precise routing, crucial for the seamless installation of 929 CEAM hinges. – Durability: Aluminum material guarantees that the template remains reliable over multiple uses without deforming. – Ease of Use: Designed for simplicity, the template allows for easy setup and use with standard routing tools, making it accessible for both professionals and DIY enthusiasts.
Applications: – Door Installations: Ideal for implementing invisible hinges in cabinet doors, interior doors, and other applications where a clean, concealed hinge appearance is desired. – Professional and DIY Projects: Suitable for both professional carpenters and DIY enthusiasts looking to achieve professional-level precision in hinge installation.
Installation Tips: – Follow Manufacturer Guidelines: Ensure to use the template as per the instructions provided by the manufacturer to achieve the best results. – Check Compatibility: Verify the compatibility of your router tools with the template to ensure a smooth routing process.
